Product Overview

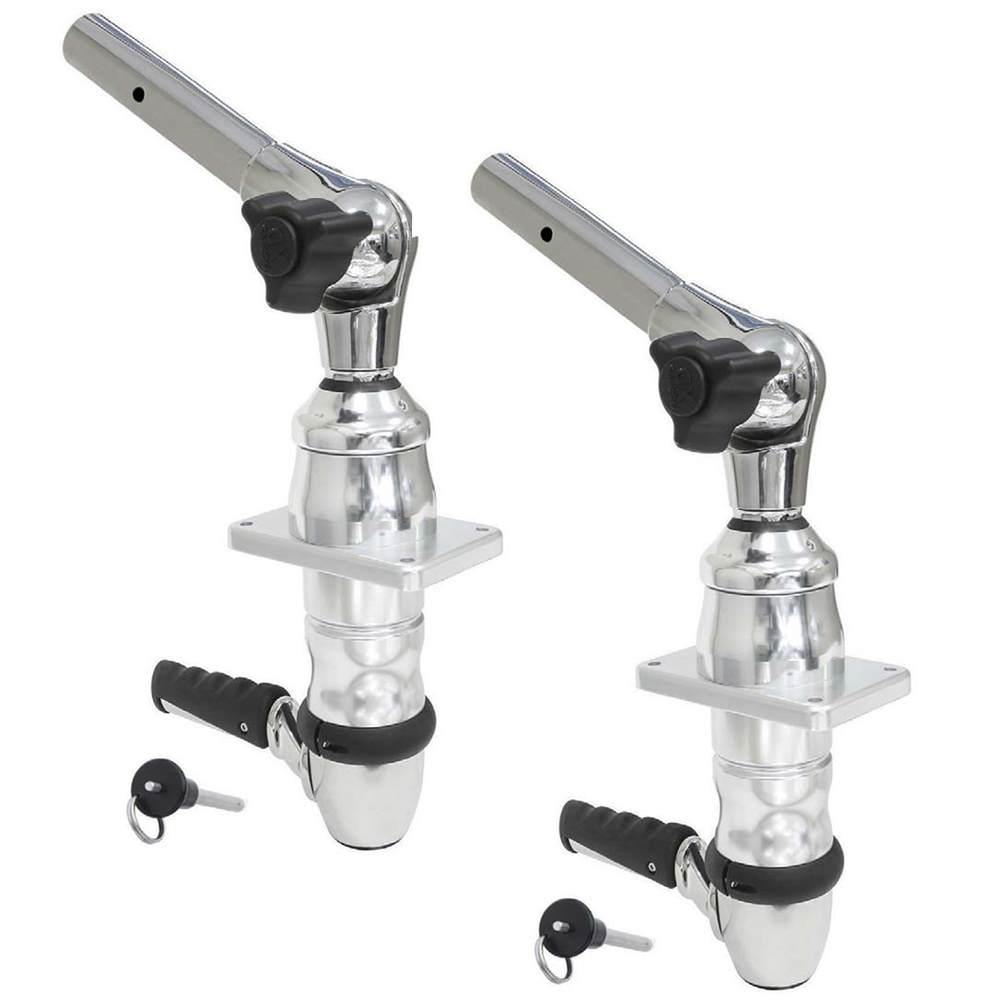

When servicing or upgrading offshore fishing, trolling and rigging, XD Top Mount is intended to handle servicing or upgrading offshore fishing, trolling and rigging while matching the relevant installation or operating requirements.
For use on sport fishing boats up to 40 feet.
Key Features
- Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
- Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using adapter
- Fits Tigress and other industry standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
- Extreme-duty 316 Stainless Steel and anodized aluminum and sealed construction with UV protection
- 24 adjustable/locking system positions (15° increments) featuring Tigress XD 316 Stainless Steel design
- 19 upper-arm angle/locking positions (10° increments) using Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
- Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
- Large 3-lobe UV ergonomic knob with integral detent feature when changing outrigger elevation
- Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops.
- User friendly underside lever actuation, with 8 optional indexable set-up positions
- Standard ¼” diameter locking stainless steel push-in-pin for outriggers
- Fits through all standard 3” diameter mounting plates and hard top holes
- Sold as pair
- 3-Year Limited Warranty
Fit & Selection Guidance
Use manufacturer part number 88850 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.
For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
