TACO Grand Slam 300XL Outrigger Mount f/1-1/2″ Outrigger

Product Overview

When servicing or upgrading boat outfitting, fishing hardware and deck systems, Grand Slam 300XL Outrigger Mount f/1-1/2" Outrigger is intended to handle setting up, operating or servicing an outrigger system while matching the relevant installation or operating requirements.

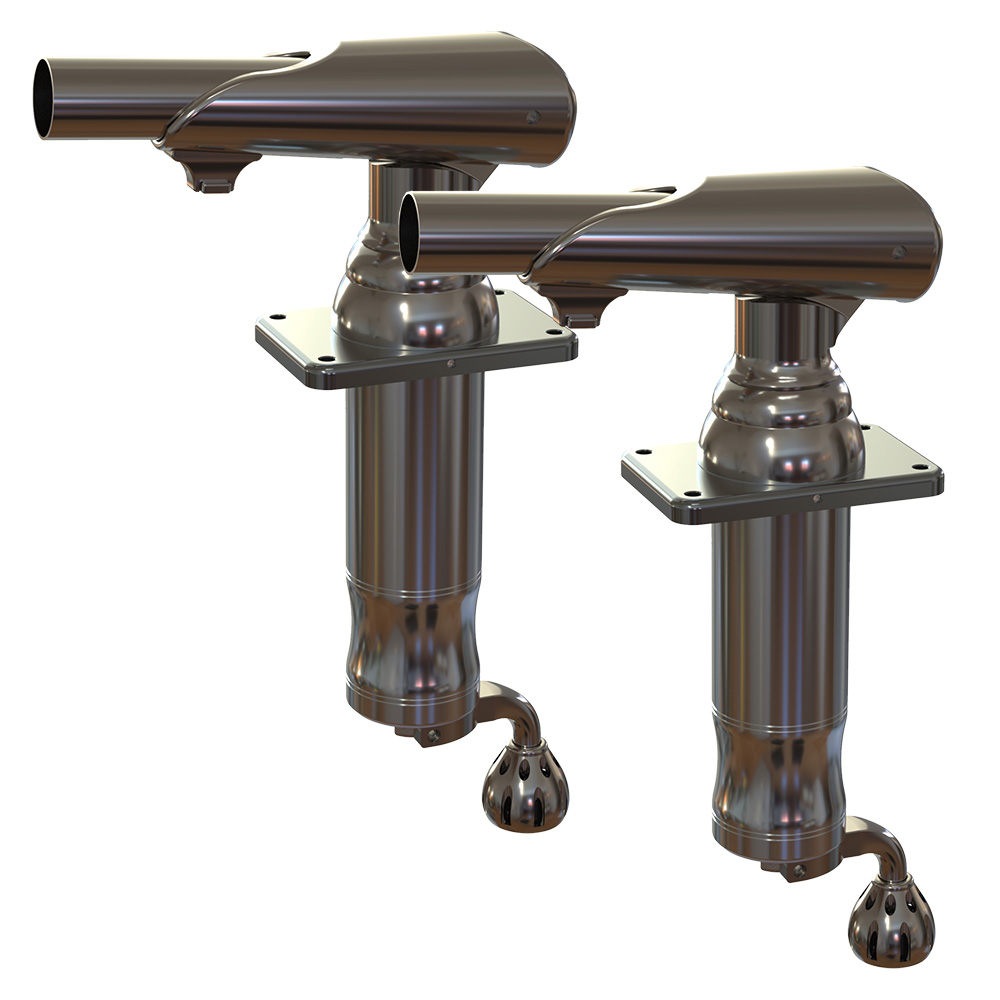

Grand Slam 300XL Outrigger Mount for 1-1/2" Outrigger Single-Handle Operation, Now for Larger Hardtops! The Grand Slam 300XL – a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount engineered for hardtops up to 4.5". Delivering enhanced safety and performance, the GS-300XL offers smooth, one-handed operation from the deck.

Product Details

• Easily adjust rotation and lift of outrigger poles with the ergonomic crank handle, which locks flush into the base for a sleek, secure fit.
• Built with an all-metal design—no plastic components—the 300XL offers a superior water seal and increased protection from the elements.
• The GS-300XL pairs seamlessly with TACO’s award-winning Open Water Internal & Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22', featuring an underside pin-locking connection that eliminates the need for port and starboard designations.
• Features & Benefits: PIN-LOCKING ARM: No port or starboard designation Underside locking pin connection Arm lifts to 46.5º from the horizontal position for kite fishing and dock clearance Pairs with 1-1/2" DIA Outrigger Poles up to 22' Can be used with Outrigger Base Reducer for 1-1/8” DIA poles HANDLE: Stainless-steel, ergonomic, single-hand crank handle with ball bearing Enables the lift and rotation of outrigger poles from the safety of the deck Unique, locking flip handle Keeps the handle knob on the bottom when lifting or rotating the outrigger offers full torque control and safety of deployment at all times Robust, dual-detented lifting crank handle locks flush into base MOUNT: Made for hardtops up to 4-1/2" thick well suited to boats 25' to 40' Constructed from cast stainless-steel and machined aluminum for a stronger, lighter base Each mount weighs 15 pounds (30 pounds per pair) Safety detents prevent uncontrolled rotation when deploying outrigger poles lets a controlled 180° rotation, if needed Locking head eliminates the downward creep of outrigger poles Equipped to handle the torque and whip generated by poles up to 22’ Includes mounting hardware for easy installation Base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems Backing plates (BP-0300) sold separately 3-year limited warranty

Fit & Selection Guidance

Use manufacturer part number GS-300XL to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
