TACO Grand Slam 300 Outrigger Mount f/1-1/2″ Outrigger

Product Overview

For work involving boat outfitting, fishing hardware and deck systems, Grand Slam 300 Outrigger Mount f/1-1/2" Outrigger from TACO Marine provides a focused option for setting up, operating or servicing an outrigger system.

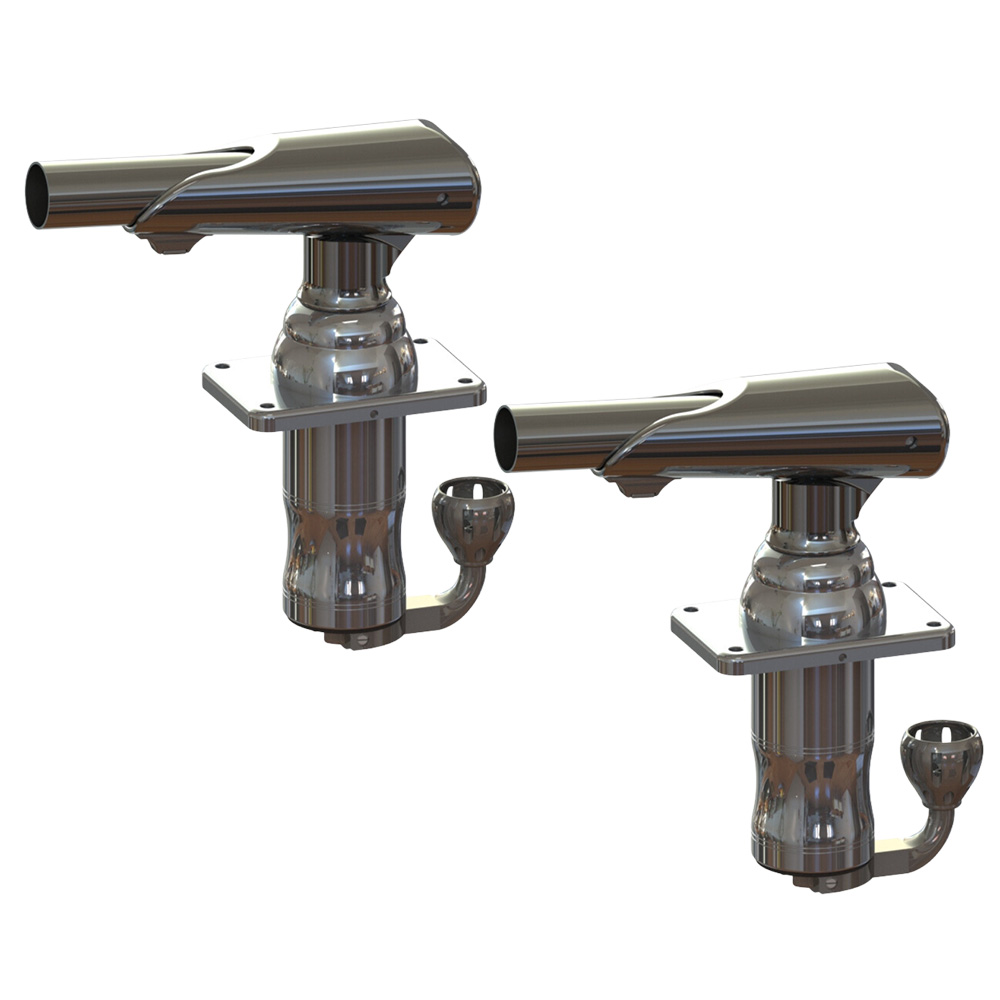

Grand Slam 300 Outrigger Mount for 1-1/2" Outrigger Single-Handle Operation is Here! Introducing the Grand Slam 300 – a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount that delivers enhanced safety and performance with smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles using the GS-300's ergonomic crank handle, which locks flush into the base.

Product Details

• The Mount's attractive, all-metal design means no plastic components, a greater water seal, and increased protection from the elements.
• The GS-300 pairs with TACO’s award-winning Open Water Internal & Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22' with an underside pin-locking connection – eliminating the need for port and starboard designations.
• Features & Benefits: PIN-LOCKING ARM No port or starboard designation Underside locking pin connection Arm lifts to 46.5º from the horizontal position for kite fishing and dock clearance Pairs with 1-1/2" DIA Outrigger Poles up to 22' Can be used with Outrigger Base Reducer for 1-1/8” DIA poles HANDLE Stainless-steel, ergonomic, single-hand crank handle with ball bearing Enables lift and rotation of outrigger poles from the safety of the deck Unique, locking flip handle Keeps the handle knob on the bottom when lifting or rotating the outrigger offers full torque control and safety of deployment at all times Robust, dual-detented lifting crank handle locks flush into base MOUNT well suited to boats 25' to 40' Constructed from cast stainless steel and machined aluminum for a stronger, lighter base Each mount weighs 15 pounds (30 pounds per pair) Safety detents prevent uncontrolled rotation when deploying outrigger poles lets a controlled 180° rotation, if needed The locking head eliminates the downward creep of outrigger poles Equipped to handle the torque and whip generated by poles up to 22’ Includes mounting hardware for easy installation The base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems Backing plates (BP-0300) sold separately 3-year limited warranty

Specifications

• Weight: 30lbs
• Sold as a pair

Fit & Selection Guidance

Use manufacturer part number GS-300 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
