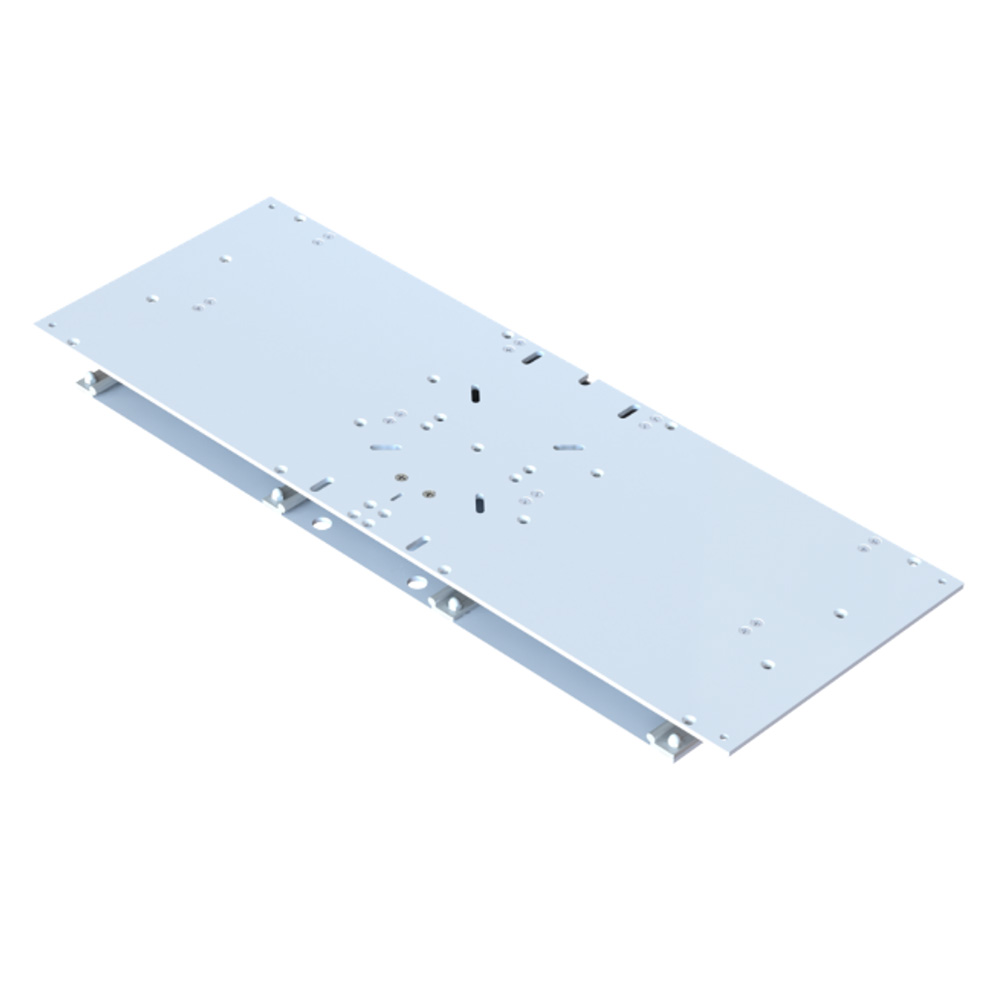

TACO 13-1/8″ x 36″ Electric Seat Slide

Product Overview

TACO 13-1/8" x 36" Electric Seat Slide is a TACO Marine product intended for boat outfitting, fishing hardware and deck systems. It is built for boat owners and installers who need a product-specific solution for installing or servicing marine seating.

well suited to seats 41" to 54" wide, this 13-1/8" X 36" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions. Contact your TACO Sales or Customer Service Representative for more information.

Key Features

• well suited to seats 41" to 54"
• Features 5" of travel distance (stroke length)
• Meets H31 testing standards for seat applications
• Precision-machined 6000-series aluminum chassis
• Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight, and shock resistant
• Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
• Quite an operation ≤ 58dB
• Electric actuator
• Self-locking at any given position (at rated loads)
• No racking in any direction due to precision tolerances in the track/glide system
• All electric seat slides and components are acid-etched clear anodized
• Made in the USA
• 3-year limited warranty

Specifications

• 12V DC 9 AMP Max current
• Max load 3500N
• Push and pull force of 1500N
• IP66 Rated
• Speed 13.5 mm/Sec @ 1500N
• This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Important Notices

This item may not be returnable to the original point of purchase. Contact the manufacturer directly for product-specific issues or concerns.

Fit & Selection Guidance

Use manufacturer part number M20-3613E to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
