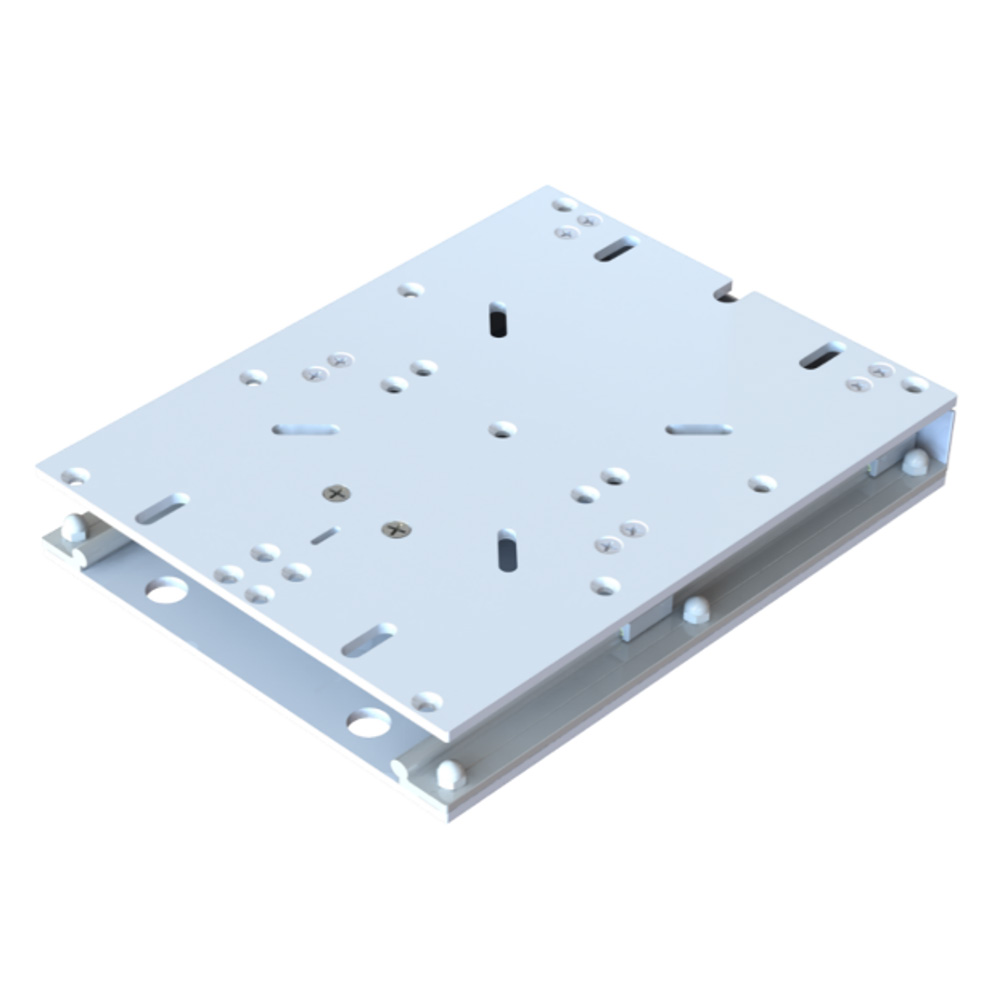

TACO 13-1/8″ x 10″ Electric Seat Slide

Product Overview

When servicing or upgrading boat outfitting, fishing hardware and deck systems, 13-1/8" x 10" Electric Seat Slide is intended to handle installing or servicing marine seating while matching the relevant installation or operating requirements.

well suited to seats 23" to 28" wide, this 13-1/8" X 10" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions.

Key Features

• well suited to seats 23" to 28"
• Features 5" of travel distance (stroke length)
• Water-resistant IP66 rating
• Meets H31 testing standards for seat applications
• Precision-machined 6000-series aluminum chassis
• Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight and shock resistant
• Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
• Quite an operation ≤ 58dB
• Electric actuator
• Self-locking at any given position (at rated loads)
• No racking in any direction due to precision tolerances in the track/glide system
• All electric seat slides and components are acid-etched clear anodized
• Made in the USA
• 3-year limited warranty

Specifications

• 12V DC 9 AMP Max current
• Max load 3500N
• Push and pull force of 1500N
• IP66 Rated
• Speed 13.5 mm/Sec @ 1500N
• This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Important Notices

This item may not be returnable to the original point of purchase. Contact the manufacturer directly for product-specific issues or concerns.

Fit & Selection Guidance

Use manufacturer part number M20-1013E to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
