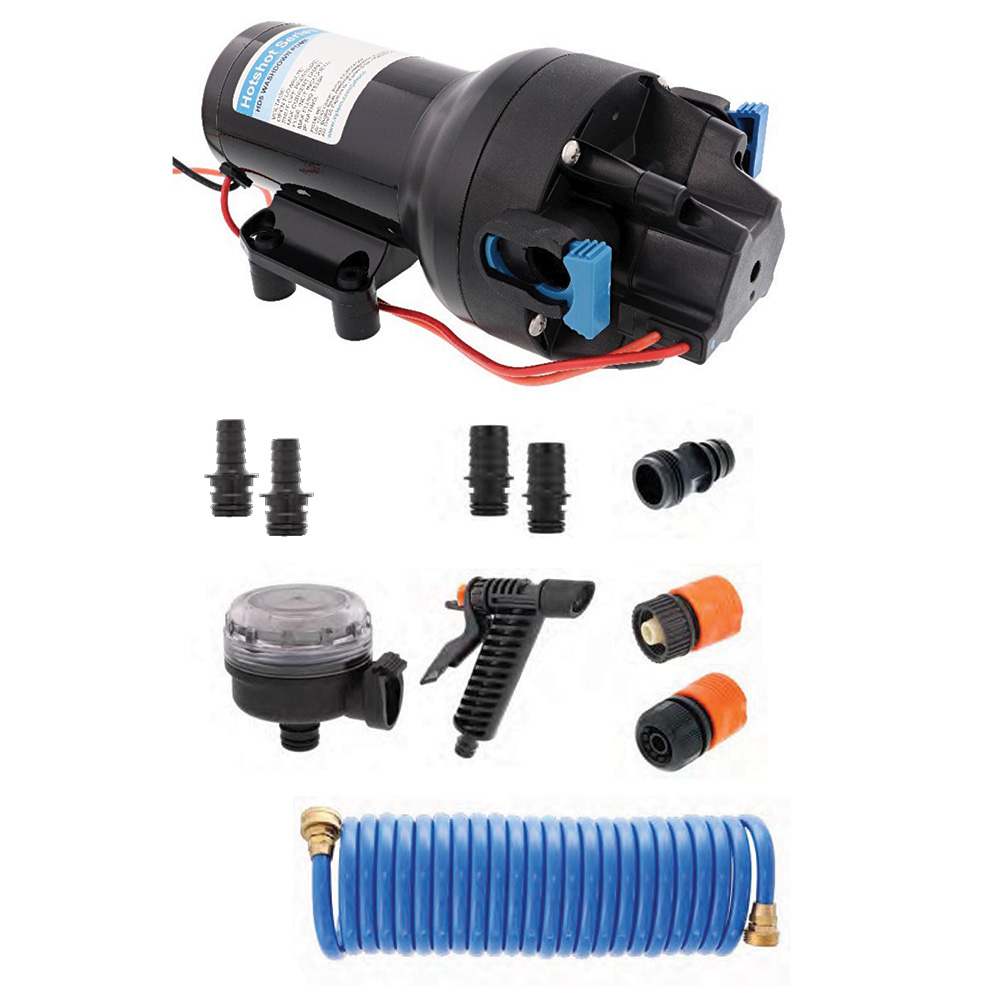

Jabsco HotShot HD5 Heavy Duty Washdown Pump Kit w/25′ HoseCoil – 12V – 5GPM – 70PSI

Product Overview

When servicing or upgrading marine plumbing, pumping, sanitation and fluid handling, HotShot HD5 Heavy Duty Washdown Pump Kit w/25' HoseCoil – 12V – 5GPM – 70PSI is intended to handle supplying pressurized washdown water while matching the relevant installation or operating requirements.

HotShot HD5 Heavy Duty Washdown Pump Kit with 25' HoseCoil – 12V – 5GPM – 70PSI Years of clean decks and satisfaction in the form of robust and dependable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits. HD (heavy-duty) models include a wider diameter motor with a powder-coated shell, cast aluminum endbells, and lower housing to improve pressure capability and life.

Product Details

• Standard models offer exceptional performance in an economical footprint.
• A plastic housing protects the motors from corrosion.

Key Features

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy-duty, motors and cast aluminum lower housings which allow for long life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming lets for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Full kit versions are available which include a 25' (7.6m) HoseCoil

Specifications

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7ft min (2.1m min)
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6
• Fittings & Accessories:
• Quick Connect straight hose barb and GHT fittings
• 90° 20 mesh Quick Connect strainer
• Trigger nozzle & Quick Connect hose adapters

Fit & Selection Guidance

Use manufacturer part number P501J-119N-4A to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
