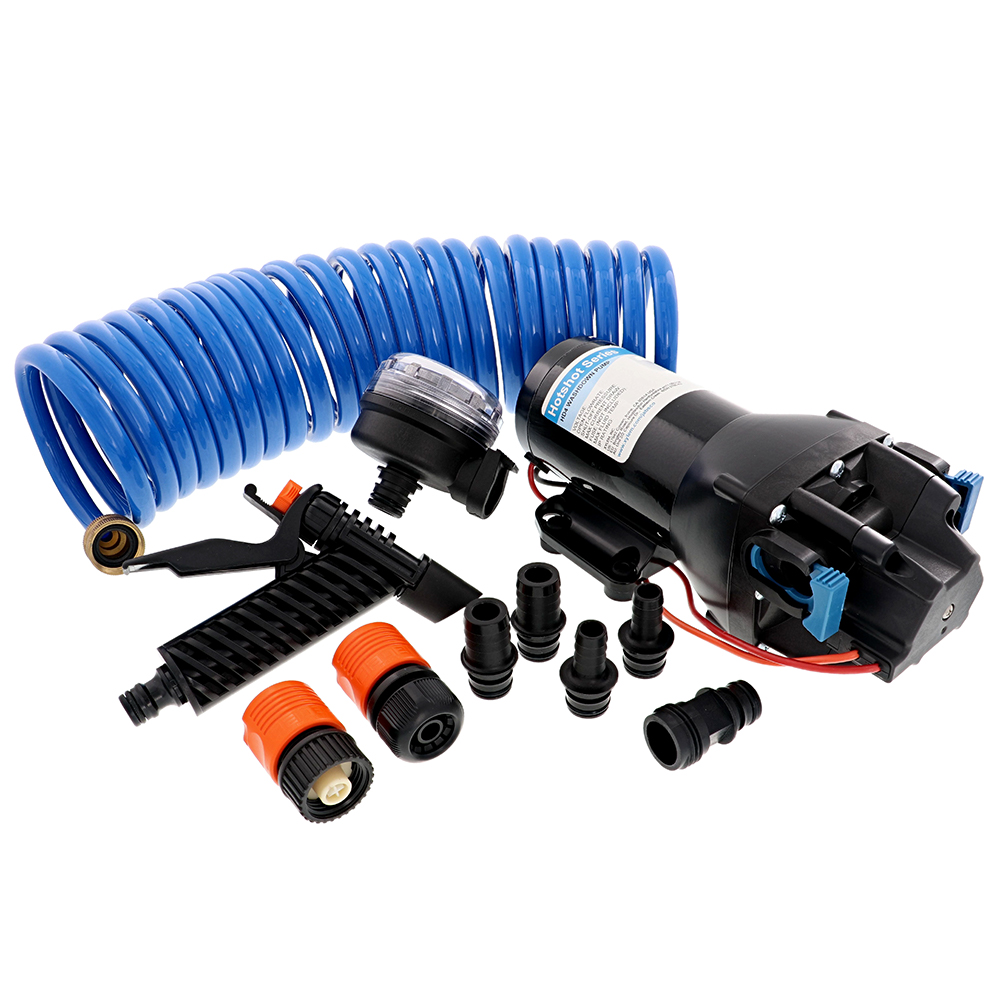

Jabsco HotShot HD4 Heavy Duty Washdown Pump w/25′ HoseCoil – 12V – 4 GPM – 60 PSI

Product Overview

When servicing or upgrading marine plumbing, pumping, sanitation and fluid handling, HotShot HD4 Heavy Duty Washdown Pump w/25' HoseCoil – 12V – 4 GPM – 60 PSI is intended to handle supplying pressurized washdown water while matching the relevant installation or operating requirements.

HotShot HD4 Heavy Duty Washdown Pump with 25' HoseCoil – 12V – 4 GPM – 60 PSI Years of clean decks and satisfaction in the form of robust and dependable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Product Details

• Standard models offer exceptional performance in an economical footprint.
• A plastic housing protects the motors from corrosion.

Key Features

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming lets for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Full kit versions available which include 25' (7.6m) hose coil

Specifications

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7ft min (2.1m min)
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6
• Fittings & Accessories:
• Quick Connect straight hosebarb and GHT fittings. Size varies by model.
• 90° 20 mesh Quick Connect straine
• Trigger nozzle & Quick Connect hose adapters
• Kit version includes 25' HoseCoil

Important Notices

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.

Fit & Selection Guidance

Use manufacturer part number Q401J-118N-4A to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
