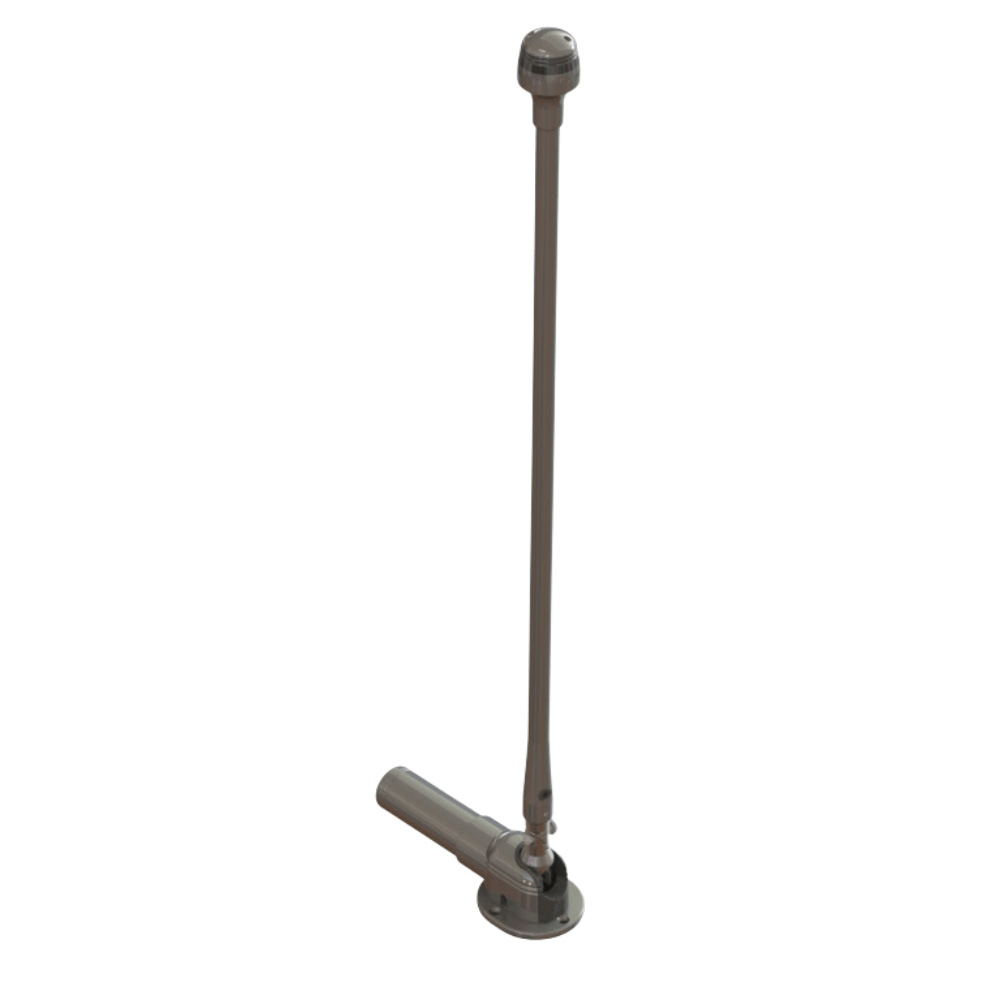

TACO Grand Slam 960 Electric Masthead Anchor Light

Product Overview

For work involving boat outfitting, fishing hardware and deck systems, Grand Slam 960 Electric Masthead Anchor Light from TACO Marine provides a focused option for anchor handling and securing the ground tackle.

The Grand Slam 960 Electric Masthead Anchor Light offers enhanced safety, durability, and style. Building on the success of the GS-950, the Grand Slam 960 features a rugged stainless-steel body and a Type 316L stainless-steel breakaway pin for superior weather resistance. It incorporates a new stainless-steel anti-backlash linear screw drive for added durability.

Product Details

• The oblong design accommodates a longer, more powerful motor for excellent performance at sea.
• Suitable for powered vessels up to 39’ (12 meters), the GS-960 meets the USCG's 3 nautical mile visibility requirement.
• Boaters can easily adjust their Masthead Anchor Light from the deck with a push-button operation, thanks to the auto-rotating stop feature and manual stop option.
• This fully electric unit has a hidden base wire inside the hardtop, which easily installs to the top’s surface.
• It has the same hole pattern as the GS-950, making upgrades possible, and fits all top thicknesses.
• The GS-960 lights run on 12 volts and consist of four 3-watt LED Cree chips driven by two Mean Well drivers.

Key Features

• Certified for USCG-required 3-nm
• Meets NMMA/ABYC C-5 5.8 Standards requirements
• NMMA Type Accepted Approved Product
• Includes heavy-duty anodized aluminum tube, light and 6” lead of 20-gauge wire from the base
• dependable long-life LEDs
• 5-watt Stern Light and 10-watt Anchor
• Low-draw, 0.6 amps per light
• Electronic Control Module (ECM) features an industry-standard On-Off-On control switch
• ECM includes a 5A fuse for device protection
• Comes with a 12” wire lead and water-sealed Deutsch connector, using 18-gauge wire from the base
• Operates on 12-volt DC for lift and descent
• No under-mount clearance needed
• Polished stainless-steel body with a mirrored finish
• Stainless-steel threaded screw drive ensures smooth lift and descent
• High-torque, anti-backlash ball-bearing motor
• Oil-lite bronze bushings for smooth operation
• The integrated nylon knob on the stainless-steel breakaway pin lets for manual operation in case of power failure
• 1-year limited warranty

Specifications

• Weight: 7.2 lbs
• UoM: Each
• CoO: USA
• Finish: VEL

Fit & Selection Guidance

Use manufacturer part number GS-960 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
