Product Overview

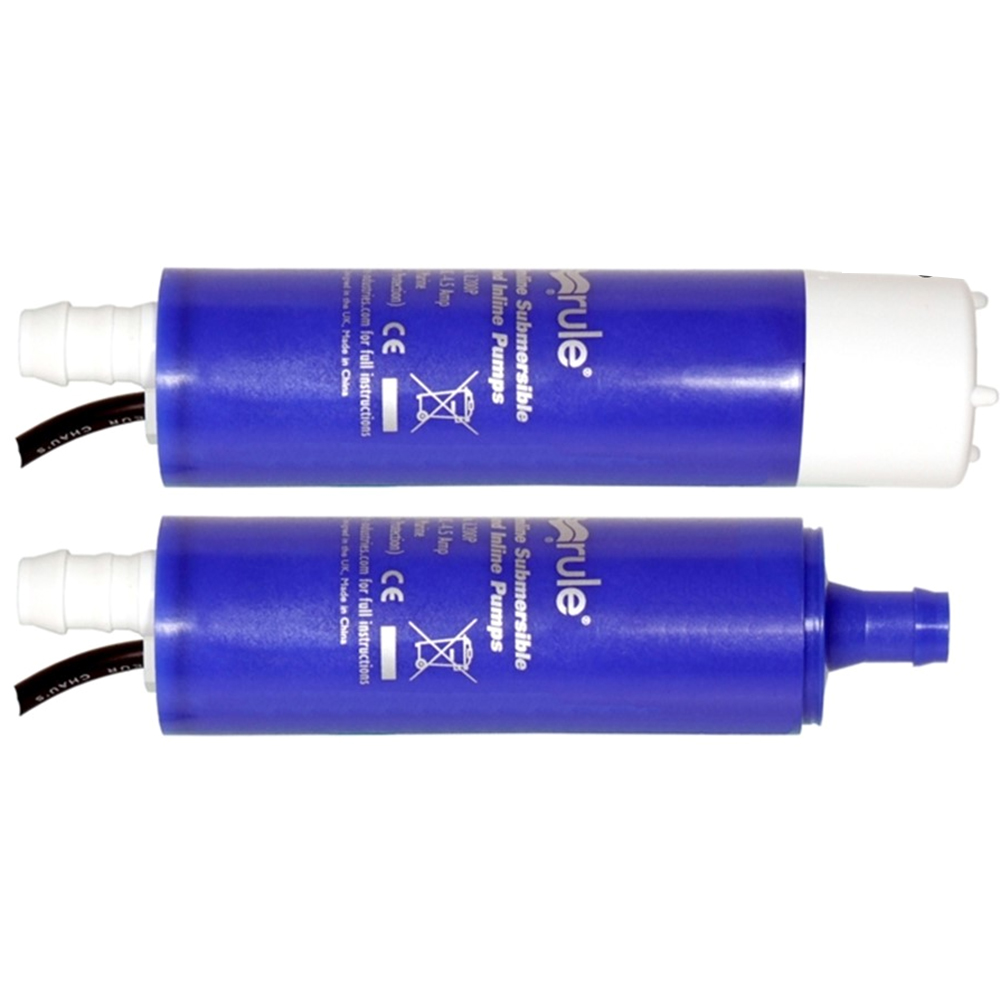

When servicing or upgrading bilge water management, livewell circulation and ventilation, IL200 Plus In-Line Submersible Pump – 24V – 2.8GPM is intended to handle moving water or other compatible fluids through an onboard system while matching the relevant installation or operating requirements.
Centrifugal submersible and inline pump.
Key Features
- Cable Length: 1(m)
- Connections: 1/2" (12.7mm) Hose
- Dimensions: 142mm long, 38mm diameter
- Maximum Current: 1.5(amps)
- Output: up to 12.7 litres/minute at up to .75bar (2.8 gallons/minute at 11psi)
- Suitable for diesel, fresh and salt water
- Quick diesel transfer with no spillage
- Bait tank aeration, diesel transfer, water transfer.
- Water Systems to 80 ºC
- Intermittent light duty
- Motor life approx 250 hours
- Actual Weight: 0.33 Kg (Approx. 0.53 Kg packed)
Fit & Selection Guidance
Use manufacturer part number IL200P-24 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.
For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
