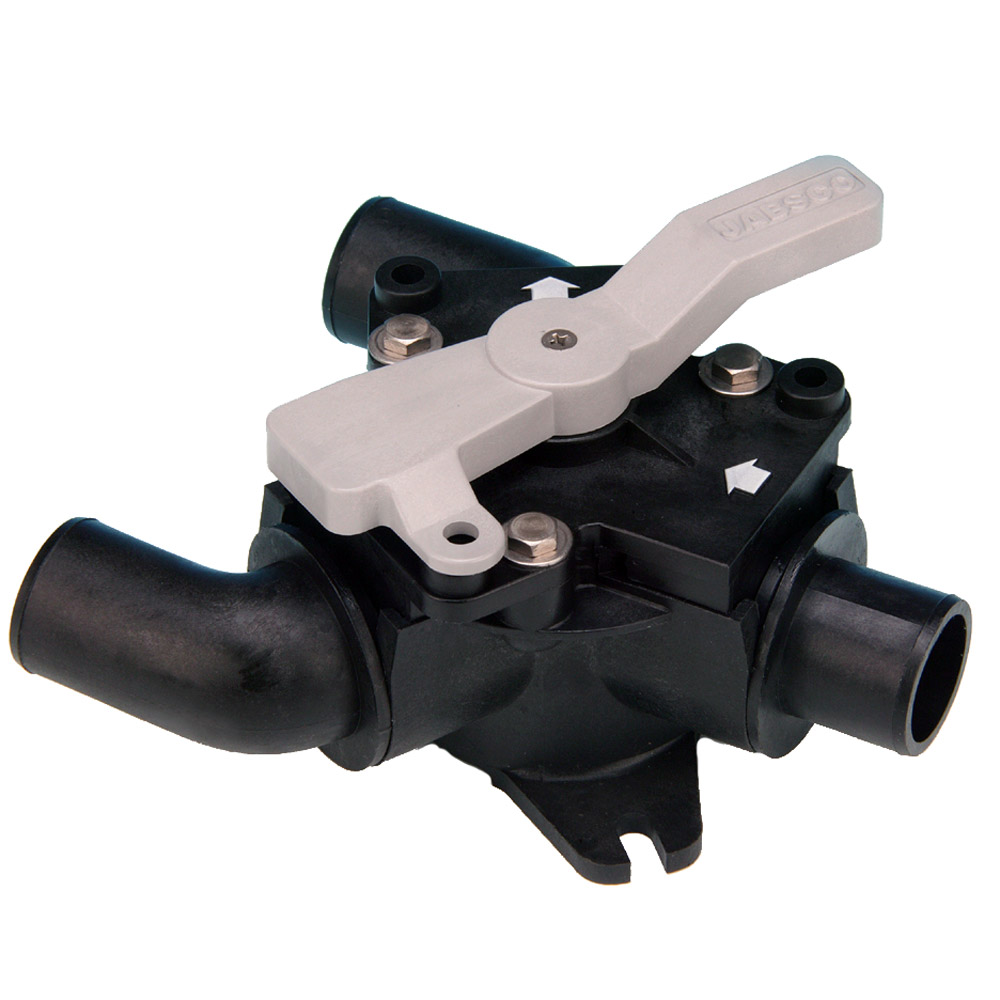

Jabsco Y-Valve

Product Overview

Jabsco Y-Valve is a Jabsco product intended for marine plumbing, pumping, sanitation and fluid handling. It is built for boat owners and installers who need a product-specific solution for servicing or upgrading marine plumbing, pumping, sanitation and fluid handling.

The Jabsco Y-Valve is built to offer flexibility of onboard waste management by diverting waste either into an onboard holding tank or directly overboard where legal to do so. Check local and Federal regulations to determine where direct overboard discharge of untreated waste is permitted. No overboard discharge of untreated waste is allowed within three miles of shore.

Product Details

• Some near shore areas and inland areas are designated as "No-Discharge Zones" where the discharge of any onboard waste, even treated waste is strictly prohibited.
• Many of these areas require a waste retention system that can be positively secured in an onboard retention mode.
• The Jabsco Y- Valve accommodates this requirement by providing the ability to add a padlock that secures the selector handle in either direction to ensure waste is directed to an onboard holding tank.
• The Y-Valve may also be used to direct waste from a holding tank to an onboard waste discharge pump for holding tank evacuation or, alternatively, to a waste deck plate for removal by a shoreside pump-out facility.
• The Y- Valve may also be used in a bilge pumping system to select between two separate bilge pickups in different bilge compartments providing for evacuation of two separate bilge areas with only one bilge pump.

Key Features

• Chemical and corrosion resistant polypropylene and stainless steel construction
• Selector lever can be padlocked (lock not included) and/or sealed in either position
• Ports can be rotated so discharge plumbing can be routed away in parallel, at 90° or in opposite directions, or either up or down without disassembly
• Valve is supplied with both 1-1/2" (38 mm) ports (fitted) and extra 1" (25 mm) straight inlet port
• Optional shaft extension lets valve to be mounted through a bulkhead up to 1-3/4" thick with only the selector handle exposed
• Self cleaning design offers trouble free operation
• Molded in flow direction indicator arrows
• Easy access to three sturdy mounting feet for quick and simple installation
• Easy access to valve by removal of just three hex head machine screws, top cover and diverter assembly lift away from the body

Important Notices

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.

Fit & Selection Guidance

Use manufacturer part number 45490-1000 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
