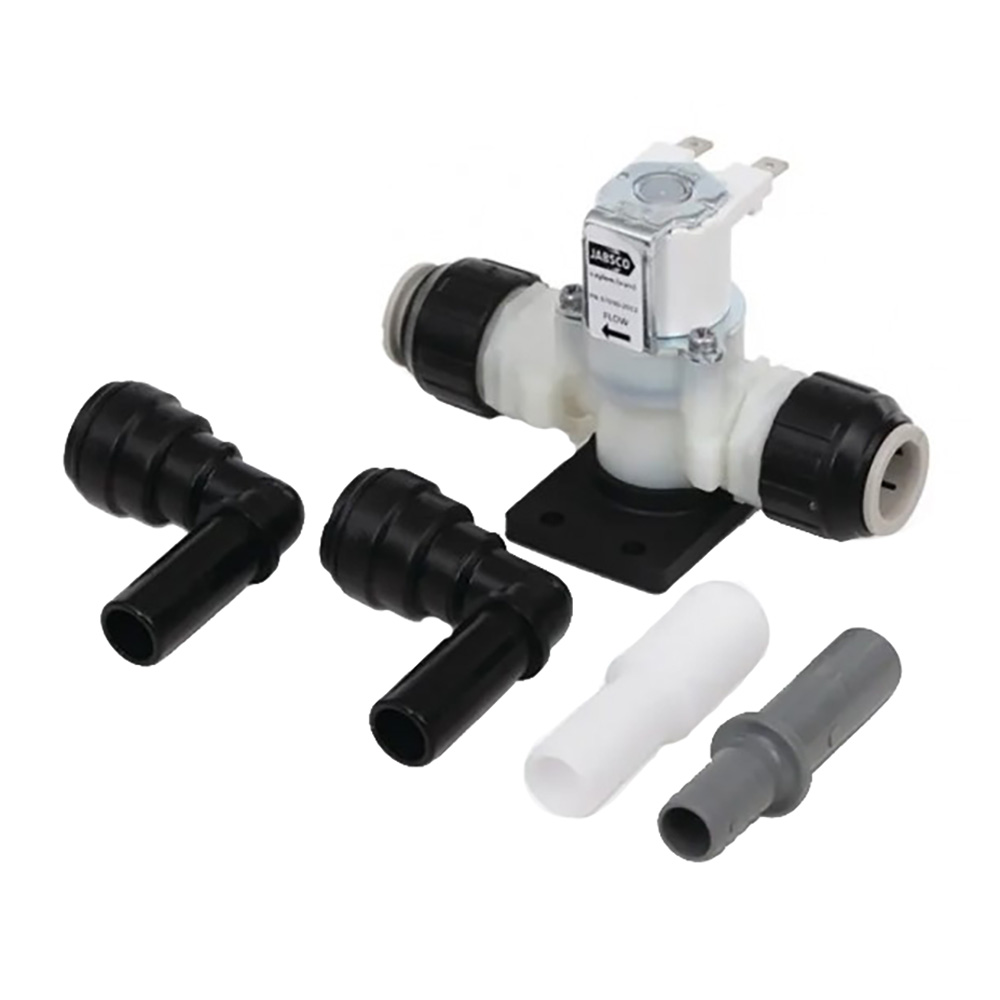

Jabsco Solenoid/Anti-Syphon Valve – 24V

Product Overview

Jabsco Solenoid/Anti-Syphon Valve – 24V fits into Jabsco’s lineup for marine plumbing, pumping, sanitation and fluid handling, with its function centered on servicing or upgrading marine plumbing, pumping, sanitation and fluid handling.

Solenoid valve for use with Quiet Flush fresh water toilets. Inline, normally closed solenoid valve.

Key Features

• Supplied with 1/2" (15mm) JG Speed fit connections, 1/2" (15mm) hose barb inlet, 3/4" (19mm) Hose barb outlet
• Double-check valve to protect against contamination of potable water
• Internal inlet filter
• Mountable in any orientation, above or below the toilet. Mounting bracket included
• Compatible with the Jabsco toilet series 37045, 37055, 37075, 58XX0

Specifications

• Voltage: 24V DC

Fit & Selection Guidance

Use manufacturer part number 37038-2024 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
