Jabsco Single Stack Water System – 4.8 GPM – 40PSI – 12V

Product Overview

When servicing or upgrading marine plumbing, pumping, sanitation and fluid handling, Single Stack Water System – 4.8 GPM – 40PSI – 12V is intended to handle servicing or upgrading marine plumbing, pumping, sanitation and fluid handling while matching the relevant installation or operating requirements.

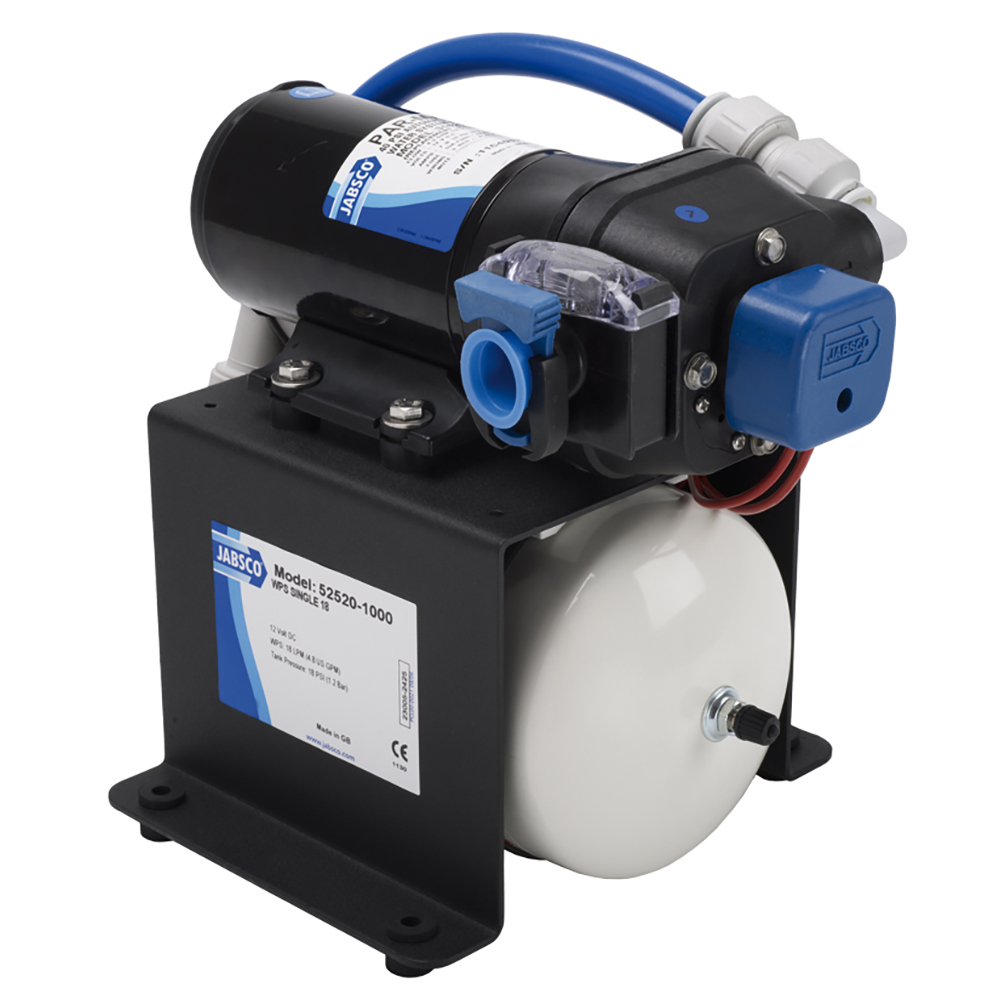

The Single Stack Water System is a fully assembled water pressure set which makes installation of water pressure systems simple. The system consists of a PAR-Max 4.0 Pump, strainer and pre-pressurized accumulator tank. Serves four or more outlets.

Key Features

• Self-priming up to 10' (3M)
• Run-dry ability
• Smooth, even flow
• Thermal overload protection
• Complies with ISO 8846 MARINE (Ignition Protection)
• Three-year warranty

Specifications

• Flow: 4.8 GPM (18LPM)
• Shut-Off Pressure: 40PSI (2.8bar)
• Fitting: Connections for 3/4" (19mm) hose tail
• Size: 12.2" Long x 9.4" Wide x 9.8" High
• Weight: 12lbs (5.4kg)

Fit & Selection Guidance

Use manufacturer part number 52520-1000 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
