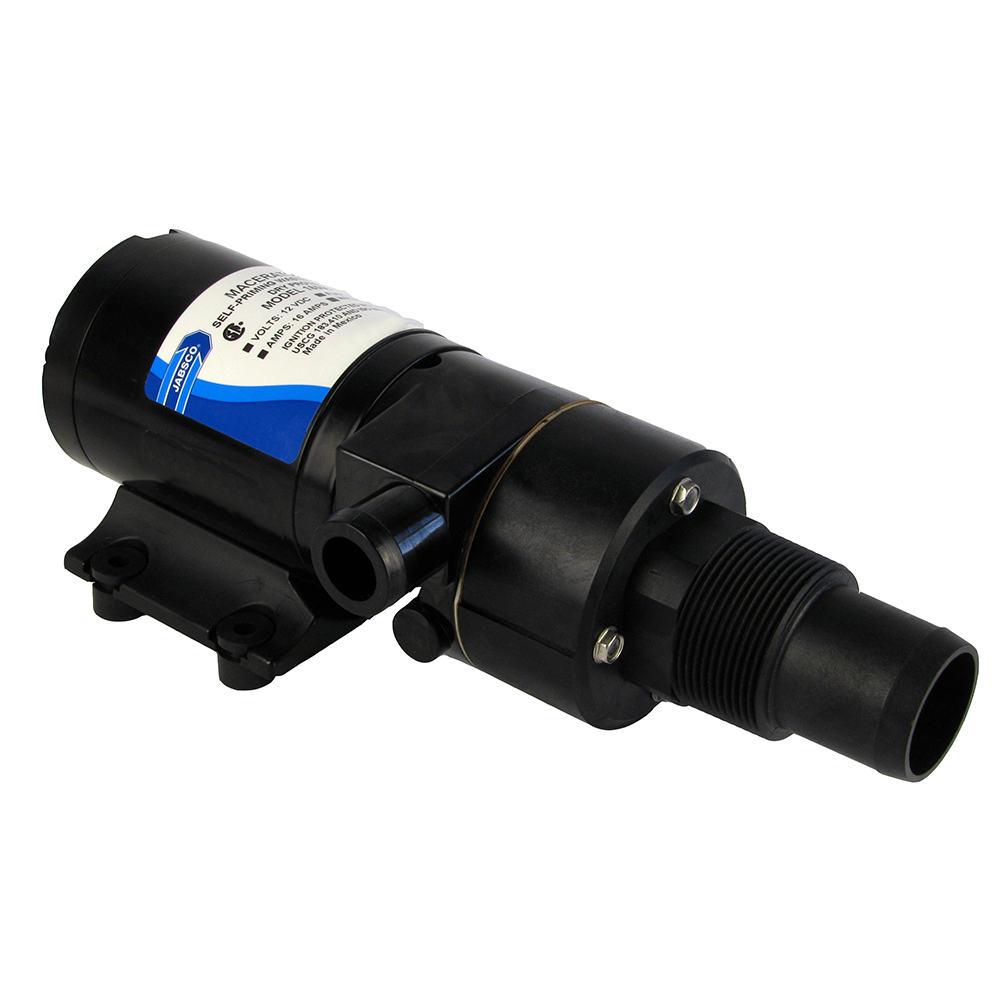

Jabsco Sealed Macerator Self-Priming Pump 12V

Product Overview

For work involving marine plumbing, pumping, sanitation and fluid handling, Sealed Macerator Self-Priming Pump 12V from Jabsco provides a focused option for moving waste through a marine sanitation system.

Sealed Macerator Self-Priming Macerator Pump with Run-Dry Protection Waste Evacuation The Jabsco 18590 series DC macerator pump unit is the ideal solution for emptying marine holding tanks when not in a discharge restricted area. Self priming to 5ft this pump will empty a typical 30 gallon (115 Liter) holding tank in less than 3 minutes. Duty cycle of the pump is 15 minutes continuous which means a 180 gallon (680 liter) can be emptied in a single operation It is recommended that holding tanks be flushed with several gallons of water after each pump out.

Product Details

• This will reduce the possibility of a continued build up of sediment in the tank which could cause a potential blockage.
• Fish Box and Livewell Tank Evacuation The Jabsco Macerator Pump is the ideal pump for the emptying of Fish box and livewell receptacles.
• Very often the livewell tank will be above the waterline of the boat, when this is the case gravity can be used to empty the livewell tank.
• If not installed in this format then it is beneficial to use the Jabsco macerator pump for evacuation due to its self-priming capabilities and also it's grinding properties.
• Fish boxes are typically mounted into the floor of the vessel and are very often below the waterline or only partially above the waterline.
• Again the Jabsco Macerator pump has the characteristics that lend themselves to this application.
• The bait residue particles of ice, fish scales and anything else that could potentially be found in the Fish-Box will be easily passed buy the Jabsco Macerator Pump, and the self priming capabilities are well suited to fish box installations common to many of today's sports fishing boats.

Key Features

• Impeller: Jabsco Nitrile compound
• Macerator: Stainless Steel Cutter reduces particle size to 1/8" maximum. New 4 blade design
• Seal: Lip Type

Important Notices

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.

Fit & Selection Guidance

Use manufacturer part number 18590-2092 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.

For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
