Product Overview
When servicing or upgrading marine plumbing, pumping, sanitation and fluid handling, Low Pressure Cyclon Centrifugal Pump – 12V is intended to handle moving water or other compatible fluids through an onboard system while matching the relevant installation or operating requirements.

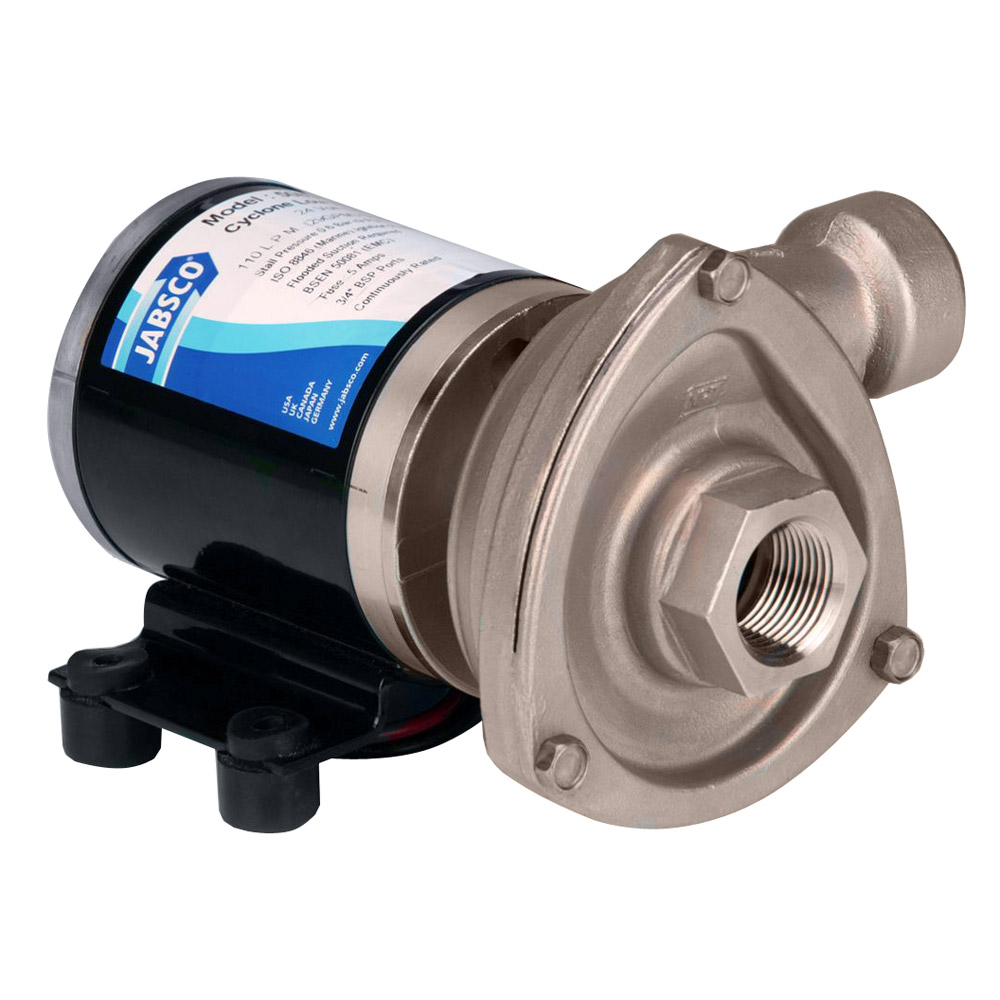

Low Pressure Cyclone Centrifugal Pump – 12V Silent running. Single tool servicing. 2m (6 foot) suction lift when wet.
Product Details
- A range of Stainless Steel General Purpose Centrifugal pumps designed specifically for the marine and industrial markets.
- Typical applications would be for circulation applications such as hot water systems, livewell or bait tank installations.
Key Features
- Heavy duty robust design
- Stainless steel construction
- Long life DC motor
- Silent running
- Anti-clog impeller design
- Long life mechanical seal
- Single tool servicing
Specifications
- Pump Body: Stainless Steel
- Port Size: 3/4" pipe threads, available with NPTF threads
- Flow: 110 Liters/Minute (29.7 gallons/min.)
- Pressure: Up to 0.6 bar (8.7psi)
- Impeller: Stainless Steel Anti-Clog Impeller Design
- Shaft Seal: Mechanical
- Maximum Current: 9 Amp
- Fuse Size: 10 Amp
- Motor: Continuously rated
- Motor life 3500 hours
- ISO 8846 Marine and USCG Regulations for Ignition Protection
- ISO 8849 Marine Bilge Pump Standard
Important Notices
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
Fit & Selection Guidance
Use manufacturer part number 50840-0012 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.
For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
