Product Overview

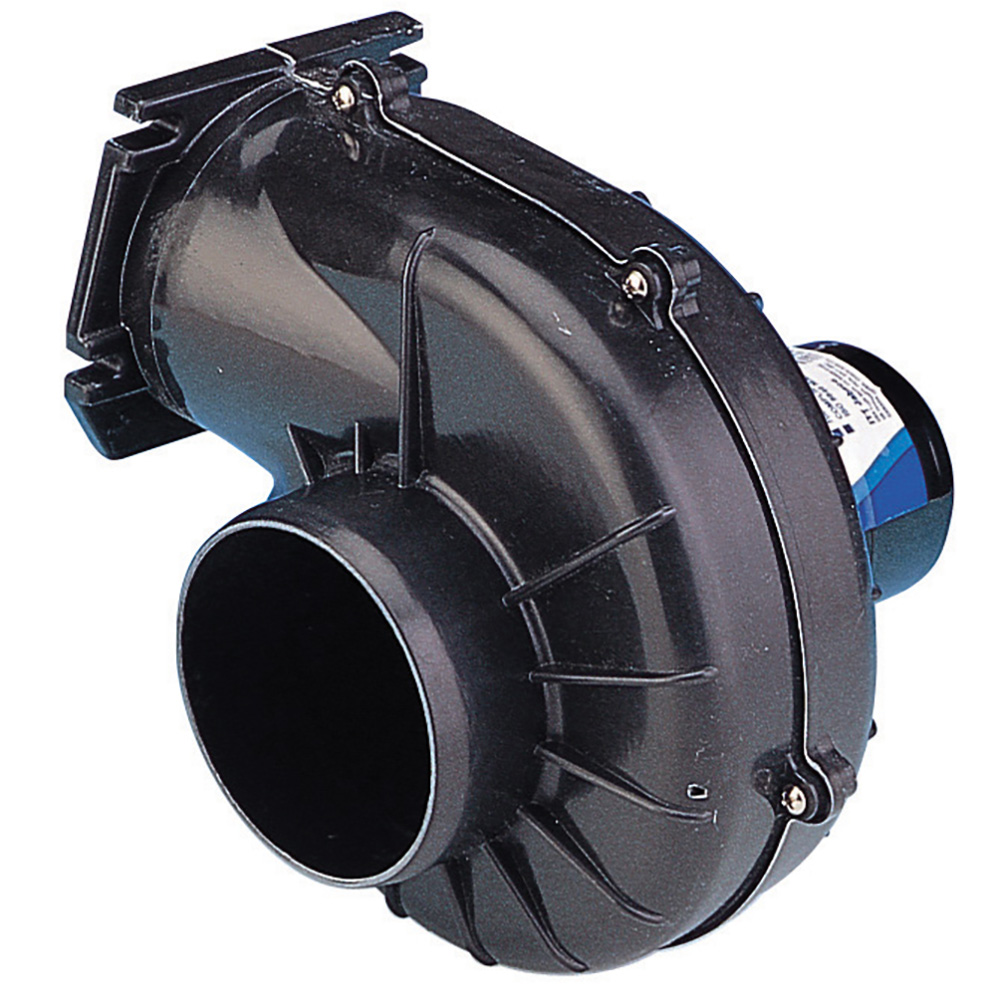

Jabsco 4" Continuous Duty Flangemount Blower – 115V, 250 CFM fits into Jabsco’s lineup for marine plumbing, pumping, sanitation and fluid handling, with its function centered on ventilating an enclosed marine compartment.
The Jabsco continuous duty 4-inch flange-mount blower, with a 115 Volt Motor. This is rated for 250 CFM. The Jabsco AC blowers are well suited to ventilating equipment areas.
Product Details
- They may also be used for engine room ventilation on vessels with diesel-powered engines only.
- The blower is also suitable for general air circulation when AC power consumption is preferred.
- Flangemount Blowers are generally mounted with the discharge port fastened directly to a flat external surface to minimize required ducting.
- The inlet port can then be connected with a duct hose to the area requiring ventilation.
- Standard models are rated for intermittent service, 15 minutes maximum.
- These commercial-duty blowers are rated for continuous service.
- The blower housing flange should be mounted on a flat bulkhead surface.
- Selection of a dry, cool location will prolong motor life.
- This blower is not ignition-protected.
- Do not use to exhaust flammable vapors such as gasoline fumes, or in areas that may contain flammable vapors.
Specifications
- Rated for 250 CFM
- 115V
- Extended Life Induction Motor
- Tough Reinforced Thermoset Plastic Housing
- Continuous-Duty Motor with Thermal Overload Protection
- Slip-on Inlet Ducting Connection
- Efficient High Volume Air Flow
- Low Current Draw
- Corrosion-Resistant Materials Throughout
Fit & Selection Guidance
Use manufacturer part number 36760-0115 to verify the exact item. Confirm dimensions, voltage, capacity, material, mounting pattern, connection type and model compatibility where applicable. Replacement parts should be matched to the exact parent equipment or system whenever the manufacturer specifies one.
For installation-sensitive products, follow the manufacturer’s current instructions and the applicable marine electrical, plumbing, structural or safety requirements for your boat.
